Filling Machine For Lip Gloss, Mascrara, Nail Pollish

Introduction:

This product is mainly used for quantitative filling of cosmetic products (liquid/paste), such as lip gloss, lip balm, mascara, nail polish, and other tube-packed products. It is filled by piston type. The pressure filling makes the mascara evenly stressed during the filling process. The inflation pressure in the hopper strengthens the fluidity of materials when filling. It is also easy to clean. Through the quantitative filling of the piston, the required capacity can be accurately set, and the error value is small, meeting the customer's production needs.

Scope of application:

Mascara and other paste materials that require pressurized filling. Simple operation, easy to clean, and have a wide range of applications. They are extremely practical and beneficial for a wide variety of users. This model combines mechanical, pneumatic, and automatic devices. Powerful features such as high degree of automation, high output, widely used stability, and popularity.

Features:

1. Bottle-feeding method: The bottle to be filled is manually inserted into a specially customized cup holder and transported to the host.

2. Bottle inspection: The photoelectric sensor detects whether there is an empty bottle on the main turntable, and sends the detection signal to the control computer to control the filling of the bottle without bottle filling.

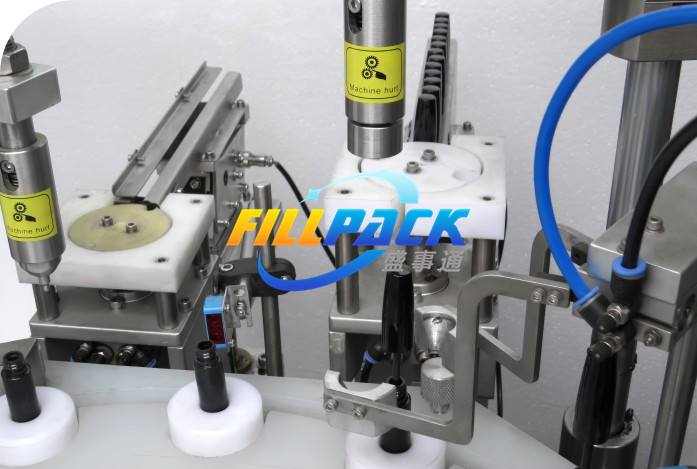

3. Filling function: If a bottle is detected in the front, the PLC controls the filling nozzle into the bottle for pressure quantitative filling.

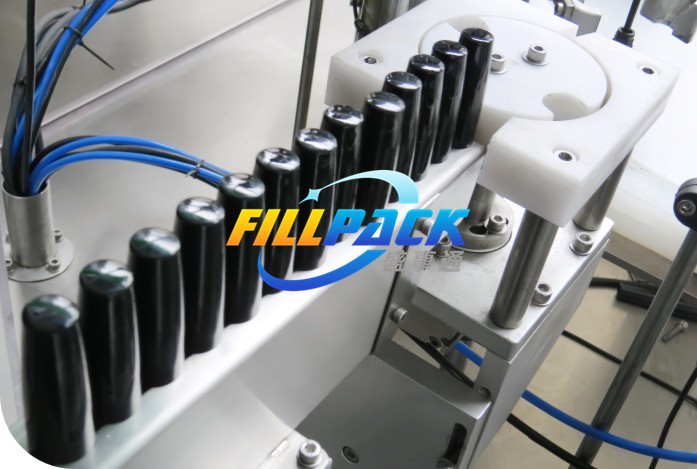

4. Inner plug mechanism: The inner plug is automatically arranged by the vibrating plate, and the inner plug is pressed into the bottle mouth by a mechanical swing arm structure.

5. Cover mechanism: By manually placing the cover into the track, it is detected that the inner plug vacuum capping mechanical swing arm is inserted into the outer cover.

6. Servo cap: The cover is detected. The servo motor controls the torque and rotation speed of the cap to ensure that the cap is tight and the tightness is uniform, and there is no scratch on the surface of the cap.

7. Out of the bottle: the step of completing the capping is mechanically ejected.

Machine specifications:

Application

This filling capping monobloc is widely used for filling cosmetic products such as lip gloss, nail polish, mascara, and other similar products.
