Perfume Bottle Filling Capping Machine

Introduction:

This product is mainly used for quantitative filling of cosmetic products. It is filled by a peristaltic pump. The pressure filling makes the product evenly stressed during the filling process. It is also easy to clean. Through the quantitative filling of the pump, the required capacity can be accurately set, and the error value is small, meeting the customer's production needs.

Scope of application:

Simple operation, easy to clean, and have a wide range of applications. They are extremely practical and beneficial for a wide variety of users. like perfume, nasal spray, saline spray, oral spray, drop bottle, roll-on bottle, etc.

This model combines mechanical, pneumatic, and automatic devices. Powerful features such as high degree of automation, high output, widely used stability, and popularity.

Working procedure:

Empty bottle-feeding -- Quantitative filling --Pump cap placing -- screw capping.

Features:

1. Bottle-feeding method: The bottle is to be fed by an automatic feeder and transported to the host. High degree of automation.

2. Bottle detection: The photoelectric sensor detects whether there is an empty bottle on the main turntable, and sends the detection signal to the control computer to control the filling of the bottle. No bottle, no filling.

3. Filling function: If a bottle is detected in the front, the PLC controls the filling nozzle into the bottle for quantitative filling.

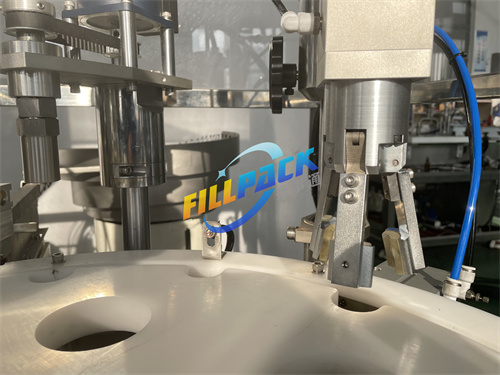

4. Capping mechanism: The brush is automatically sorted by the vibrating bowl, and the brush is pressed into the bottle mouth by a mechanical swing arm structure.

5. Discharge of the bottle: after the step of completing the capping is mechanically ejected.

Main parameters:

Sample products:
